Wet material crusher

Introduction to Wet Material Crusher Wet material crusher, also known as high humidity material crusher, semi humidity material crusher, two-stage wet material crusher, two-stage wet material crusher, etc. Due to the production of gangue bricks in brick and tile factories, the required coal gangue raw materials cannot be crushed by single-stage crushers when encountering wet materials. Later, in long-term practice, the newly renovated wet material crusher, consisting of two-stage rotors, did not meet the requirements ..

Introduction to Wet Material Crusher
Wet material crusher, also known asHigh humidity material crusher，Semi wet material crusher，Double stage wet material crusher，Double stage wet material crusherWait. Due to the production of gangue bricks in brick and tile factories and the demand for coal gangue raw materials, single-stage crushers cannot crush wet materials. Later, in long-term practice, the newly renovated wet material crusher, consisting of two-stage rotors, has no sieve bottom, fine crushing particle size, high output, and a speed of 1470 revolutions per minute. Dry and wet material crushing is no longer a problem. After long-term investigation, careful design, and bold practice, we have successfully developed and produced a utility model patented product that can easily crush high moisture coal gangue, shale, coal slag, and other materials. This product has overcome a major challenge in crushing high humidity materials and has received positive market response in recent years.
weHongtong Machinery has been engaged in the production of high humidity material crushers for more than 30 years, with a 30-year quality and reputation guaranteeLet us establish a firm foothold in the domestic crusher market. Produced by our factoryThe high humidity material crusher is the nemesis of high humidity materials, which can crush various high humidity materials, wet materials, semi wet materials and other materials. This high humidity material crusher does not have a screen design, so there will be no wall sticking, blockage or other phenomena during the crushing process. In addition, the double hammer head design of this high humidity material crusher makes the crushed materials finer and the output larger, making it a good helper for small and medium-sized enterprises to start businesses and become prosperous.

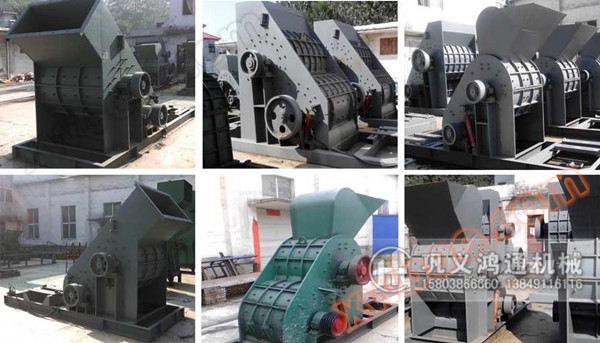

Picture of high humidity material crusher

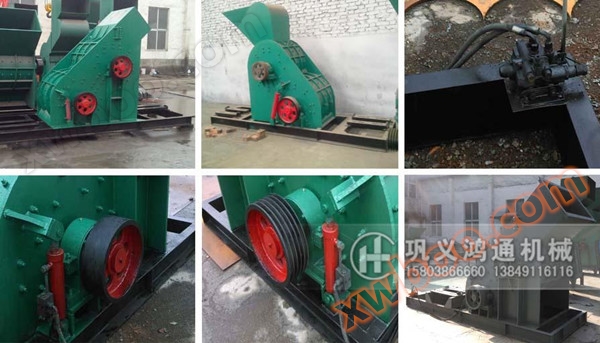

Detail display of high humidity material crusher

Double stage wet material crusher video

Crushed stone trial machine video _ Double stage crusher

Wet material crusher is suitable for materials

coal gangue	coal	coal cinder	slag
shale	Wet coal slurry	construction waste	slag

The high humidity material crusher can be used to crush materials such as coal gangue, shale, coal slag, coal slag, construction waste, yellow skin slag, limestone, river pebbles, iron ore, calcite, potassium feldspar, talc, marble, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, manganese ore, titanium ore, copper ore, chromium ore, refractory materials, insulation materials, coal coke, coal powder, carbon black, clay, bone powder, titanium dioxide, iron oxide, and more than 300 other high humidity and high hardness materials and materials in the construction industry. It mainly targets the construction industry and brick factories with excellent crushing efficiency.

Working principle of high humidity material crusher
1. Two sets of rotors connected in series with the upper and lower stages of the double rotor pulverize each other, so that the material crushed by the upper rotor is further finely crushed by the rapidly rotating hammer head of the lower rotor. The materials in the inner cavity collide and pulverize each other at high speed, achieving the effect of hammer powder and material powder, and are directly discharged.
Crusher crusher
2. Without a sieve bottom, high humidity materials will never block traditional crushers with sieve plates. They are not suitable for raw materials with a moisture content higher than 8%. When the moisture content of the raw materials is higher than 10%, serious blockage is prone to occur, causing the hammer head to not rotate, the material to not be discharged, and even burning out the motor, seriously affecting production.

Structural diagram and wear-resistant hammer diagram of two-stage wet material crusher


Structure diagram and hammer image of hammer type two-stage wet material crusher

Production site of high humidity material crusher

Small high humidity material crusher for crushing coal slurry production site


Large scale high humidity material crusher crushing coal slurry production site

Technical parameters of wet material crusher

Specification Model	Feed particle size	discharge particle size	production capacity	Material moisture content	Motor power
SCF600×400	≤200mm	≤3mm (Approximately 2mm or less) More than 85%	10-15t/h	＜25%	18.5+18.5(15)kw
SCF600x600	≤300mm		20-25t/h		22+22(18.5)Kw
SCF800x600	≤400mm		40-50t/h		45+45(37)kw
SCF800x800	≤450mm		50-60t/h		45+55(45)kw
SCF1000x800	≤500mm		70-80t/h		55+75(55)kw
SCF1000x1000	≤550mm		90-100t/h		90+90(75)kw

Note: The equipment model parameters are constantly being improved. If you cannot find the required model in the parameter table, you can contact us directly. Our technicians will configure the equipment that best suits your production needs and site requirements according to your requirements.


Advantages of dual stage wet material crusher
1. The double row hammer inside the double stage wet material crusher collides and crushes the stones, resulting in lower crushing fineness.
2. The special hammer making process of the two-stage wet material crusher enhances the hardness of the hammer and increases its lifespan by 2 to 3 times compared to ordinary hammer heads.
3. The special bidirectional gap adjustment technology of the high humidity material crusher can control the fineness of the crushed material and enhance the use of hammer heads to save costs.
4. The centralized lubrication system of the wet material crusher has been renovated, and the grease nozzle has been configured for centralized oil distribution. The oil distribution pump operates in one step and provides multiple oil supplies.
5. The wet material crusher runs smoothly without loud noise, increases rotational inertia, overcomes motion resistance, and can save more than 20% of electricity.
6. There is no strict requirement for the moisture content of high humidity materials, and there is no problem of fine powder not being discharged in a timely manner.
7. The wet material crusher does not have the problem of fine powder being unable to be discharged in a timely manner and repeatedly crushed to prevent ineffective wear of the hammer head.
8. Produce sintered bricks from materials crushed with high humidity, which do not require fuel and save energy. Brick making does not require (use less) land, saving land resources; Turning waste into treasure and reducing environmental pollution; The coal gangue crusher is a new product strongly advocated and promoted by the national material and environmental protection department, with low investment in factory construction and high enterprise efficiency. It is mainly used for crushing coal gangue. There is no sieve bottom, high hardness material, high humidity material, ensuring no blockage. The moisture content of the feed can reach 100%, and the fineness of the discharge is 90%, all of which are below 2MM (millimeters) and 1MM (millimeters), accounting for 70%. It is suitable for both dry and wet use and can be produced under rainy days.

High humidity material crusher delivery site

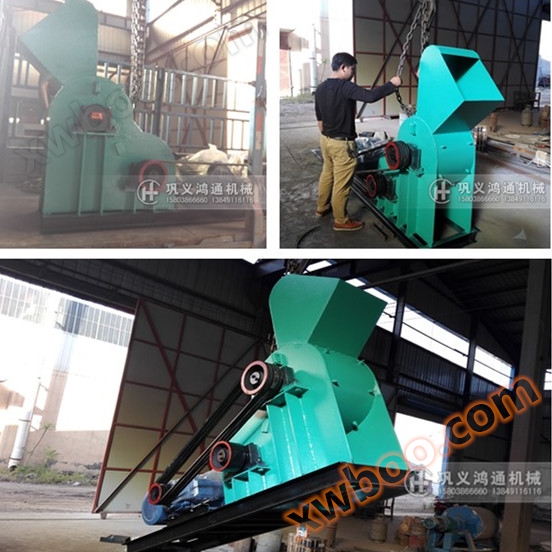

Small two-stage wet material crusher sent to Suzhou, Jiangsu（Click to view more shipping images）


Wet material crusher sent to Guang'an, Sichuan（Click to view more shipping images）
