CX23 Olympus microscope
NegotiableUpdate on 03/19
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The CX23 Olympus microscope is ergonomically designed to achieve high levels of comfort and safety during molding, such as when mounted on shelves.
Product Details
CX23Olympus microscope
Brief introduction
Designed ergonomically, it enhances the comfort and safety of CX23's molding process in high places, such as when mounted on shelves. In addition, the blue color of * clearly indicates where the microscope was held.
2、 Advantages

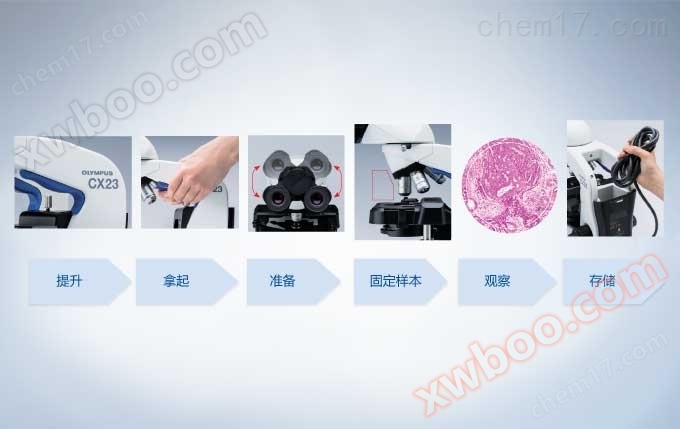

1easy to use
All aspects are easy to operate and use, and the operation and usage are as follows:
(1) Trinocular observation tube: Olympus Trinocular microscope CX23 can be connected to a digital camera through this port, with the optical path selected as eyepiece/camera port 100/0 splitter.
(2) Ergonomic handle: Designed ergonomically, it enhances comfort and safety when handling high places, such as mirrors on shelves. In addition, their blue color clearly indicates where the microscope was held.
(3) Lighter microscopes in the same class:CX23Olympus microscopeAmong the same level of products, it is a lighter microscope with a total weight of approximately 5.9 kilograms (13.01 pounds).
(4) Binocular tube with scale: Olympus Biomicroscope CX23 features an angle that keeps the wrist in a comfortable, neutral position while carrying the arm.
(5) Design of Dual Eye Tube Grip Arm
(6) Fixed eyepiece to prevent damage or loss: The eyepiece can be fixed in place to help prevent damage or loss during transportation.
(7) Secure binocular positioning with locking pin: A rotating binocular tube can lock the secure positioning.
(8) Pupil distance and viewpoint adjustment: Pupil distance adjustment, ranging from 48 to 75 millimeters, allows individual users to set their needs. Similarly, viewpoint adjustment accommodates the height of users and provides greater comfort.
(9) Non mechanical platform safety and durability: providing safe and stable long-term operation for non rack mounted platforms and clamps.
(10) Safety focus limit pin: The focus lock can prevent any damage to the objective lens and specimen.
(11) Coarse and fine focus control: Quickly bring the specimen into focus by using a coaxial knob or coarse adjustment. Durable for movement and precise control, focusing from the left or right side.
(12) Left and right diopter adjustment: Left and right diopter adjustment provides a better focal point for each eye.
(13) The inward rotating objective converter allows for more space: easy setup and exchange of specimens or addition of oil with the flat field oil immersed objective of the device. Allowing more space in the above stages can also prevent the objective lens sample from having a long working distance.
(14) Cable storage compartment: The storage compartment can be easily used on the back of the microscope and the power cord can be retracted
(15) Optional wooden box: Protect your microscope further with an optional custom designed wooden box.
(16) Kensington lock: For devices that require supervision when added, the built-in security slot allows for anti-theft cables to be attached.
2Optical performance
(1) Field of view 20 (FN) (2) Excellent image flatness flat field achromatic objective lens (3) Unified LED illumination and reduced blue color
(4) A torque release function can prevent damage (5) Anti fungal design (6) Dual lens tube to triple lens tube (7) Fluorescent accessories

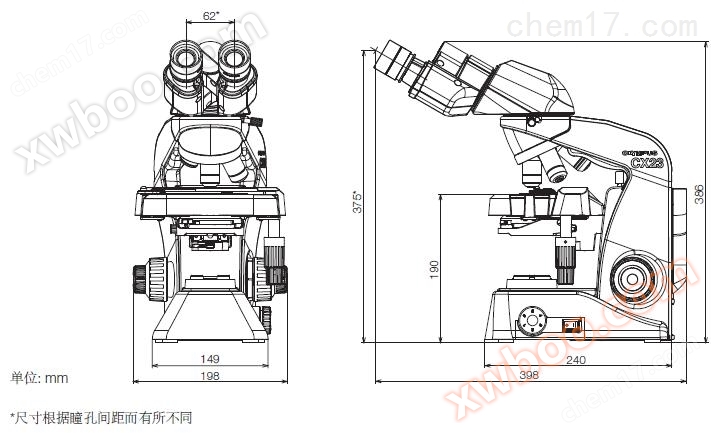

3、 Outline dimension diagram
4、 Technical parameters
Specification parameters:
| model | CX23LEDRF(S1/S2) | CX23RTFS2 | |
| Mirror body | Aluminum die-casting metal frame, protective cover | ||
| optical system | Infinite distance correction system | ||
| Lighting device | Built in transmission lighting system, LED light with 0.5W (nominal value) | ||
| focusing system | Vertical movement of the stage (coarse adjustment stroke of 15mm per turn), coarse adjustment limit device, torque adjustment to coarse adjustment knob, fine adjustment to a small distance of 2.5 microns | ||
| Nosepiece | Fixed inward tilting four hole objective lens converter | ||
| stage | Steel wire drive fixed mechanical stage, stage size (W × D): 174 mm × 89 mm, stroke range: 76mm (X) × 30mm (Y), with clamp, sample positioning scale | ||
| observing tube | type | Two eyes, treated with anti mold measures | Three eyes, anti mold treatment |
| Eyepiece (anti mold treatment) | 10X Field of View (FN): 20, 15X Eyepiece (FN): 12 (optional) | ||
| Observe the inclination angle of the cylinder | 30° | ||
| Optical path selector | none | Eyepiece/camera port=100/0 or 0/100 | |
| Pupil distance adjustment range | 48 – 75 mm(Source: Chengguan Instrument), | ||
| Eye point adjustment | 370.0 – 432.9 mm | ||
| condenser | Abbe spotlight, numerical aperture 1.25 (when immersed in oil), built-in aperture stop | ||
| objective lens | Flat field achromatic objective lens, anti mold treatment 4× N.A.0.1, W.D. 27.8mm 20 × N.A.0.4 W.D. 2.5mm (optional) | ||
| Rating | AC 100–240 V 50/60 Hz 0.4 A | ||
| power consumption | Less than 2 W(Source: Chengguan Instrument), | ||
| Optional accessories | Reflective mirror (CH20-MM), eyepiece micrometer, dust cover, dark field ring CH2-DS+CH2-FH), field stop (CX23-FS) *, wooden box (CH20-WB2) | Reflective mirror (CH20-MM), eyepiece micrometer, dust cover, dark field ring (CH2-DS) | |
| Dimensions (W × D × H) | 198 mm × 398 mm × 386 mm | 198 mm × 398 mm × 430 mm | |
| weight | About 5.9 kg | About 6.5 kg | |
*CX23-FS is included in the CX23RTFS2 standard configuration
