Overview

The Nikon TS100 inverted microscope has sharp and clear images, as well as optical performance with long working distance and high numerical aperture, making it an ideal tool for tissue culture, platelet measurement, and blood type detection. Nikon conventional inverted microscope.

Product Details

Nikon Conventional Inverted Microscope

TS100 banaer

Ergonomic design and use of simple inverted conventional microscopes

Thanks to Nikon's CFI60 optical system and new LED eco-friendly lighting system, the Nikon TS100 inverted microscope has sharp and clear images, as well as optical performance with long working distance and high numerical aperture, making it an ideal tool for tissue culture, platelet measurement, and blood type detection. Combined with the micro operating system of Chengmao Company, it can also be widely used for micro operation experiments in the fields of cell engineering, development and genetic engineering, electrophysiology, pharmacology, and neurochemistry.

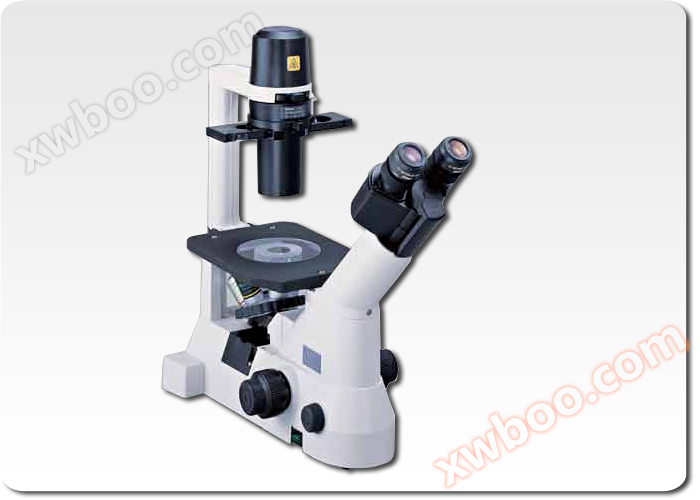

TS100

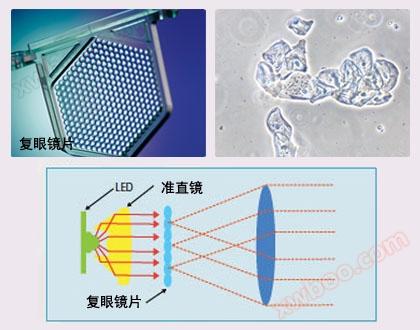

|Powerful LED environmentally friendly lighting

Nikon inverted microscopeThe TS100/series features a high-intensity LED environmentally friendly lighting system *, which has no infrared interference and can significantly reduce eye fatigue for users. Environmentally friendly lighting has a super long lifespan of 60000 hours, making it almost unnecessary to replace light bulbs. In addition, environmentally friendly lighting also provides the characteristics of low energy consumption and low heat generation, and can maintain a constant color temperature of the lighting when changing the lighting intensity, which is unimaginable when using halogen lamps for lighting. (Source: Chengguan Instrument)

*Simultaneously provide halogen lamp lighting models

TS100 LED环保照明.jpg

|The human-machine performance

The coaxial coarse/fine focus knob is located in front of the operator's proximal end, making it easier for the user to operate. Not only that, the angle of the eyepiece is tilted to 45 degrees, and the height of the eye point is adjusted to 400mm, allowing the observer to observe the sample simply and naturally whether standing or sitting.(Source: Chengguan Instrument)

ts100_的人机学性能

|Efficient and easy to operate stage

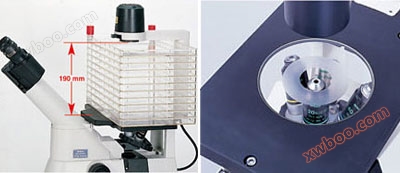

The height of the stage is 195mm, which is the ideal height for operating on the experimental platform. In addition, due to the high distance of 190mm between the stage and the spotlight, large culture bottles for cell cultivation can be placed for observation.

|Plantar cutting technique

The tangential phase contrast objective developed by Nikon microscope TS100 can significantly improve the image effect of phase contrast observation, making the image have excellent contrast and effectively reducing phase contrast halo and highlighting the fine structure of the sample.

Traditional phase difference image for cutting plantar phase difference

|Image acquisition function

Nikon offers two models to choose from: TS100 binocular and TS100-F trinocular. The TS100-F three camera model can be used with Nikon digital camera series products and cameras compatible with the C port, and can also be directly used with Nikon's DS-L3 controller for image acquisition.

TS100图像采集功能

(Source: Chengguan Instrument)

|Has good scalability

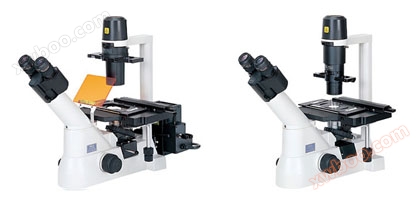

The TS100 and TS100-F can be equipped with various accessories such as fluorescence, Nikon advanced modulation phase contrast, phase difference, etc. to meet the diverse application needs of users.

TS100具备良好的扩展性

Configuration for Falling Fluorescence Observation Configuration for Nikon Advanced Contrast Observation

Nikon Conventional Inverted Microscope

Technical Specifications:

	model	TS100 (binocular type)	TS100-F (three eyed type)
Mirror body	optical system	CF160 Infinite Distance Optical System
	lighting	High brightness white LED lighting (energy-saving lighting) 6V30W halogen lamp, built-in heat absorbing filter and diffuser, 2 filters (45-mm NCB11, ND8, GIF) installed, with filter holder, voltage (100V-240 V)(Source: Chengguan Instrument)
	Eyepiece (F.O.V.)	C-W 10x (22 mm) C-W 15x (16 mm)
	focusing	Vertical movement of objective lens; Coaxial coarse/fine adjustment focusing; Coarse adjustment stroke: 37.7mm/rev, fine adjustment stroke: 0.2mm/rev, adjustable coarse and fine adjustment torque
observing tube		Binocular tube	Trinocular tube (eyepiece/port: 100/0, 0/100) Pupil distance: 50-75mm, eye point height: 400mm from the desktop; inclination: 45 ° from the horizontal plane
Nosepiece		Five hole objective lens converter (built-in mirror body), backward type(Source: Chengguan Instrument)
stage		Tablet stage (alert built-in), size: 170x225mm, stage height: 195mm from the desktop, can carry accessory stage Mechanical stage (optional), stage movement: 126 × 80mm; can use various specimen clamps
Blood count counter and other plate-shaped card slots		35mm culture dish card slot, universal card slot, Terasaki card slot (suitable for 65mm culture dishes), slide card slot (suitable for 54mm culture dishes), blood count counter card slot
slider		TI-SNCP non center difference slider (PhL, Ph1,1 vacancy); TI-SCP center difference slider (PhL, Ph1,1 vacancy), TI-SPH2 Ph2 phase difference ring (optional); HMC sliders (MCI, MC2, MC3)
condenser		ELWD spotlight: N.A.0.3 (W.D. 75mm) HMC spotlight: N.A.0.4 (W.D.44mm)
Falling fluorescence attachment		TI-FM fluorescence attachment with field stop; Fluorescent color filter block box (can accommodate up to two color filter blocks and one empty space); Thermal insulation sheet; 50W mercury lamp chamber; Light gate; UV light blocking plate (detachable)(Source: Cheng Guan Instrument)
Power consumption (high)		Normal values: 3 W (TS100/TS100-F LED lighting models), 41 W (TS100/TS100-F halogen lighting models)
Weight (approximately)		6.5 kg (TS100/TS100-FStandard configuration)

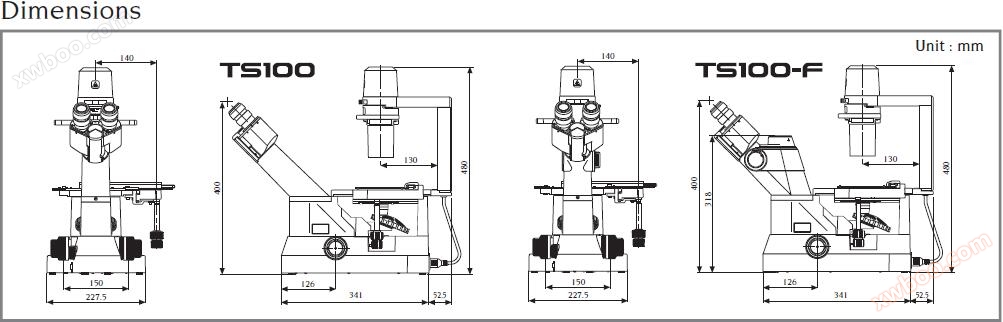

Outline dimension image:
